PN64 DIN Globe Valve F2 series


DIN globe valve PN64, DN15~150
Design and manufacture: DIN3356
Face to face: DIN3202-F2, EN558-1
End flange Dimensions: DIN2546, EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers’ requirement.
PN64 DIN Globe Valve F2 series

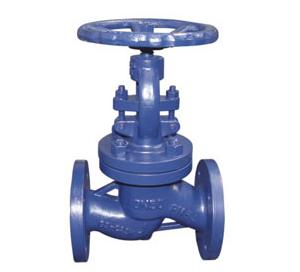

DIN globe valve
Main Part Material

NO.

Name Parts

Material

NO.

Name Parts

Material

1

Body

Gs-C25+13Cr

9

Packing

Graphite

2

Disc

A105+13Cr

10

Pin

Carbon steel

3

stem

A182 F6

11

Bolt

A193 B7

4

Disc Nut

A105

12

Gland

Gs-C25

5

Bolt

A193 B7

13

Nut

A194 2H

6

Nut

A194 2H

14

stem Nut

Bronze

7

Gasket

Graphite

15

Handwheel

A105

8

Bonnet

Gs-C25

16

Nut

A194 2H


Dimensions(mm) and Weights (kg)

PN64

DN

15

20

25

32

40

50

65

80

100

125

150

L

210

230

230

260

260

300

340

380

430

500

550

H

210

230

250

275

300

325

385

410

455

510

560

W

120

120

140

160

180

200

220

250

300

350

400

Weight(kg)

8

10

12

16

17

26

33

42

60

85

110
