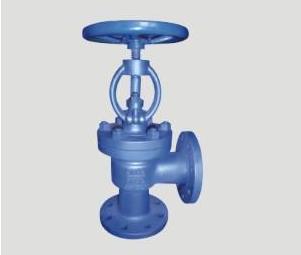

PN16~40 DIN Angle Globe Valve F32 series


angle globe valve PN16~40, DN15~150
Design and manufacture: DIN3356
Face to face: DIN3202-F32, EN558-1
End flange Dimensions: DIN2543(PN16),DIN2544(PN25),DIN2545(PN40),EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers’requirement.
PN16~40 DIN Angle Globe Valve F32 series


angle globe valve
Main Part Material

NO.

Name Parts

Material

NO.

Name Parts

Material

1

Body

Gs-C25+13Cr

10

Gland

Gs-C25

2

Disc

A105+13Cr

11

Nut

A194 2H

3

Disc Nut

Carbon steel

12

stem

A182 F6a

4

Gasket

Graphite

13

Bonnet

Gs-C25

5

Bolt

A193 B7

14

stem Nut

Bronze

6

Nut

A194 2H

15

Grub screw

Carbon steel

7

Pin

Carbon steel

16

Handwheel

A105

8

Packing

Graphite

17

Washer

Carbon steel

9

Eyebolt

A193 B7

18

Nut

A194 2H


Dimensions(mm) And Weights (kg)

PN16        PN25       PN40

DN

15

20

25

32

40

50

65

80

100

125

150

L

90

95

100

105

115

125

145

155

175

200

225

H

193

200

223

256

273

287

328

352

400

452

480

W

PN16

120

120

160

160

200

200

220

250

300

350

400

PN25

120

120

160

160

200

200

220

250

300

350

400

PN40

120

120

160

160

200

240

280

320

360

400

450

Weight(kg)

PN16

6

7.5

8

9

14

18

26

29

48

69

89

PN25

6

7.5

8

9

15

19

29

31

52

72

98

PN40

7

8.5

9

12

16

20

32

34

55

78

105
