Class 150~1500 Cast steel Globe Valve


API globe valve
API globe valve


Class 150~1500Lbs, NPs 2~12"
Type: Through way, Y-Globe and Angle Type
Basic Design: ANsI B16.34, Bs1873
Face to Face Dimension: ANsI B 16.10
Flanged Ends to ANsI B 16.5
B.W. Ends to ANsI B 16.25
Manufacturing to NACE MR-01-75 on request

Os&Y, Rising stem, Plug Type Disc Bolted Bonnet, Threaded seat Ring


standard Material specifications

NO.

Part Name

Carbon steel to AsTM

Alloy steel to AsTM

stainless steel to AsTM

WCB

LCB

WC6

WC9

C5

CF8

CF8M

CF3

CF3M

1

Body

A216 WCB

A352 LCB

A217 WC6

A217 WC9

A217 C5

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

2

seat Ring

A105

A350 LF2

A182 F11

A182 F22

A182 F5

A182 F304

A182 F316

A182 F304L

A182 F316L

3

Disc

A105

A350 LF2

A182 F11

A182 F22

A182 F5

A182 F304

A182 F316

A182 F304L

A182 F316L

4

stem

A182 F6

A182 F6

A182 F304

A182 F304

A182 F316

A182 F304L

A182 F316L

5

Disc Nut

A182 F6

A182 F6

A182 F304

A182 F304

A182 F316

A182 F304L

A182 F316L

6

Gasket

ss spiral Wound/Graphite or ss spiral Wound/PTFE

7

Bonnet Nut

A194 2H

A194 4

A194 7

A194 8

8

Bonnet Bolt

A193 B7

A320 L7

A193 B16

A193 B8

9

Backseat Bushing

A182 F6

A182 F6

A182 F304

A182 F304

A182 F316

A182 F304L

A182 F316L

10

Bonnet

A216 WCB

A352 LCB

A217 WC6

A217 WC9

A217 C5

A351 CF8

A351 CF8M

A351 CF3

A351 CF3M

11

Lantern

A182 F6

A182 F6

A182 F304

A182 F304

A182 F316

A182 F304L

A182 F316L

12

stem Packing

Graphite or PTFE

13

Gland

A182 F6

A182 F304

A182 F316

A182 F304L

A182 F316L

14

Gland Flange

A216 WCB

A351 CF8

15

Gland Nut

A194 2H

A194 8

16

Gland Eyebolt

A194 B7

A193 B8

17

Pin

Carbon steel or stainless steel

18

stem Nut

A439 D2 or B148-952A

19

screw

Carbon steel

20

Hand Wheel

Ductile Iron or Carbon steel

21

Nameplate

stainless steel or Aluminum

22

Washer

Carbon steel

23

Nut

Carbon steel or stainless steel

Other materials (Alloy 20, AIsI321, AIsI347, Monel, Hastelloy, etc) are available on request

Trim Material to API 600

seating
Code

seat Ring
surface
Part NO. 2

Disc seat
Part NO. 3

stem
Part NO. 4

Backseat
Bushing
Part NO. 9

1

13Cr

13Cr

F6

F6

2

304

304

F304

F304

5

stellite

stellite

F6

F6

8

stellite

13Cr

F6

F6

9

Monel

Monel

Monel

Monel

10

316

316

F316

F316

13

Alloy20

Alloy20

Alloy20

Alloy20


Test Pressure to API 598

Class

Body Material

shell Test (Hydrostatic)

seat Test (Hydrostatic)

seat Test (Air)

150

WCB

450psi

315psi

80psi

WC6

450psi

319psi

CF8M

425psi

303psi

300

WCB

1125psi

814psi

WC6

1125psi

825psi

CF8M

1100psi

792psi

600

WCB

2225psi

1628psi

WC6

2250psi

1650psi

CF8M

2175psi

1548psi

900

WCB

3350psi

2442psi

WC6

3375psi

2475psi

CF8M

3250psi

2376psi

1500

WCB

5575psi

4078psi

WC6

5625psi

4125psi

CF8M

5400psi

3960psi

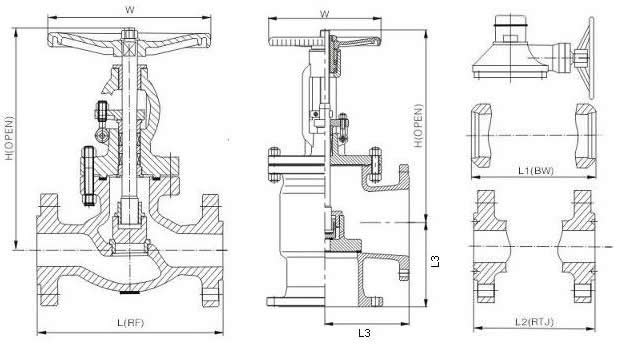

Dimensions (mm) And Weights (kg)

Class

NPs

in

2

2-1/2

3

4

5

6

8

10

12

DN

mm

50

65

80

100

125

150

200

250

300

150

L-L1
(RF-BW)

in

8

8-1/2

9-1/2

11-1/2

14

16

19-1/2

24-1/2

27-1/2

mm

203

216

241

292

356

406

495

622

698

L2
(RTJ)

in

8-1/2

9

10

12

14-1/2

16-1/2

20

25

28

mm

216

229

254

305

368

419

508

635

711

L3

mm

102

108

121

146

178

203

248

311

349

H (OPEN)

in

14-11/16

15-3/8

16-9/16

20-1/4

21-3/16

22-5/16

24-5/8

28

39

mm

373

390

421

515

538

567

626

712

990

W

in

7-7/8

9-7/8

9-7/8

11-13/16

11-13/16

13-3/4

15-3/4

17-3/4

24

mm

200

250

250

300

300

350

400

450

610

WT
(Kg)

in

22

29

42

64

77

105

154

288

507

mm

19

25

34

49

65

82

131

249

430


Class

NPs

in

2

2-1/2

3

4

5

6

8

10

12

DN

mm

50

65

80

100

125

150

200

250

300

300

L-L1
(RF-BW)

in

10-1/2

11-1/2

12-1/2

14

15-3/4

17-1/2

22

24-1/2

28

mm

267

292

318

356

400

444

559

622

711

L2
(RTJ)

in

11-1/8

12-1/8

13-1/8

14-5/8

16-3/8

18-1/8

22-5/8

25-1/8

28-5/8

mm

283

308

333

371

416

460

575

311

727

L3

mm

133

146

159

178

200

222

279

638

356

H (OPEN)

in

15-11/16

17-1/8

18-3/16

22-1/16

24-3/8

27-5/16

38-5/8

44-1/2

41-5/16

mm

398

436

462

560

620

694

982

1130

1049

W

in

7-7/8

9-7/8

9-7/8

13-3/4

15-3/4

17-3/4

22-1/16

34

18-1/8

mm

200

250

250

350

400

450

560

864

460*

WT
(Kg)

in

31

43

57

86

130

168

280

385

724

mm

26

28

44

68

110

138

228

329

618


Class

NPs

in

2

2-1/2

3

4

6

8

10

12

DN

mm

50

65

80

100

150

200

250

300

600

L-L1
(RF-BW)

in

11-1/2

13

14

17

22

26

31

33

mm

292

330

356

432

559

660

787

838

L2
(RTJ)

in

11-5/8

13-1/8

14-1/8

17-1/8

22-1/8

26-1/8

31-1/8

33-1/8

mm

295

333

359

435

562

664

791

840

H (OPEN)

in

16-3/4

19-3/4

20-1/2

24-3/8

34-7/8

36-11/16

41

50-3/8

mm

425

502

521

620

886

932

1040

1280

W

in

9-7/8

11-13/16

13-3/4

17-3/4

28-3/8

18-1/8

24

30

mm

250

300

350

450

720

460*

610*

760*

WT
(Kg)

in

39

58

73

120

327

482

700

900

mm

33

48

61

95

261

385

588

795


Class

NPs

in

2

2-1/2

3

4

6

8

DN

mm

50

65

80

100

150

200

900

L-L1
(RF-BW)

in

14-1/2

16-1/2

15

18

24

29

mm

368

419

381

457

610

737

L2
(RTJ)

in

14-5/8

16-5/8

15-1/8

18-1/8

24-1/8

29-1/8

mm

371

422

384

460

613

740

H (OPEN)

in

9-7/16

10-1/4

10-1/4

12-5/8

15

20-7/8

mm

240

260

260

320

382

530

W

in

13-3/4

15-3/4

17-3/4

22-1/16

18-1/8

24

mm

350

400

450

560

460*

610*

WT
(Kg)

in

100

118

131

218

452

710

mm

75

94

105

185

340

630


Class

NPs

in

2

2-1/2

3

4

6

8

DN

mm

50

65

80

100

150

200

1500

L-L1
(RF-BW)

in

14-1/2

16-1/2

18-1/2

21-1/2

27-3/4

32-3/4

mm

368

419

470

546

705

832

L2
(RTJ)

in

14-5/8

16-5/8

18-5/8

21-5/8

28

33-1/8

mm

371

422

473

549

711

841

H (OPEN)

in

9-7/16

10-1/4

27-1/4

35-11/16

40

45-1/16

mm

240

260

692

907

1015

1145

W

in

13-3/4

15-3/4

17-3/4

18-1/8

24

24

mm

350

400

450

460*

610*

610*

WT
(Kg)

in

112

141

228

336

650

762

mm

84

115

183

277

515

630

* Manual gear operator is recommended
