PN16~40 DIN Globe Valve F1 series


DIN globe valve PN16~40, DN200~500
Design and manufacture: DIN3356
Face to face: DIN3202-F1, EN558-1
End flange Dimensions: DIN2543(PN16), DIN2544(PN25), DIN2545(PN40), EN1092-1

Pressure test: DIN3230, EN12266-1

The size of serial, valve connecting flange can be design according to customers’ requirement.

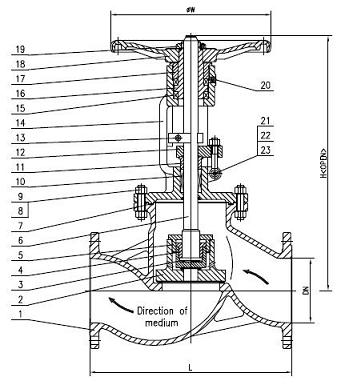

PN16~40 DIN Globe Valve F1 series


DIN globe valve

Main Part Material

NO.

Name Parts

Material

NO.

Name Parts

Material

1

Body

Gs-C25+13Cr

13

split

Carbon steel

2

Big Disc

A105+13Cr

14

Bonnet

Gs-C25

3

small Disc

A105+13Cr

15

Bearings

Alloy steel

4

small Disc Nut

A105

16

stem Nut

A439 D2

5

Big Disc Nut

A105

17

Retaining Nut

1035

6

stem

A182 F6a

18

Handwheel

A536

7

Gasket

Graphite

19

Nut

Carbon steel

8

Nut

A194 2H

20

Nipple

Brass

9

Bolt

A193 B7

21

Pin

Carbon steel

10

Packing

Graphite

22

Bolt

A193 B7

11

Gland

A182 F6a

23

Nut

A194 2H

12

Gland Flange

Gs-C25








Dimensions(mm)

PN16        PN25       PN40

DN

200

250

300

350

400

500

L

600

730

850

980

1100

1250

H

785

928

1030

1170

1220

1450

W

450

500

600

700

800

800
