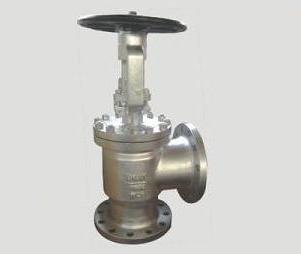

PN16~40 DIN Angle Globe Valve F32 series |
| |
 |
PN16～40, DN200～300
Design and manufacture: DIN3356
Face to face: DIN3202-F32, EN558-1
End flange Dimensions: DIN2543(PN16), DIN2544(PN25), DIN2545(PN40), EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers’ requirement. |
PN16~40 DIN Angle Globe Valve F32 series |
|

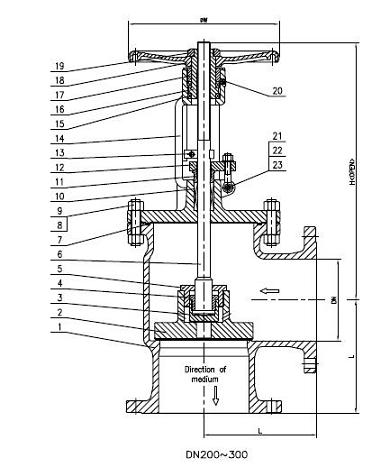

Main Part Material
NO. |
Name Parts |
Material |
NO. |
Name Parts |
Material |
1 |
Body |
Gs-C25+13Cr |
13 |
split |
Carbon steel |
2 |
Big Disc |
A105+13Cr |
14 |
Bonnet |
Gs-C25 |
3 |
small Disc |
A105+13Cr |
15 |
Bearings |
Alloy steel |
4 |
small Disc Nut |
A105 |
16 |
stem Nut |
A439 D2 |
5 |
Big Disc Nut |
A105 |
17 |
Retaining Nut |
1035 |
6 |
stem |
A182 F6a |
18 |
Handwheel |
A536 |
7 |
Gasket |
Graphite |
19 |
Nut |
Carbon steel |
8 |
Nut |
A194 2H |
20 |
Nipple |
Brass |
9 |
Bolt |
A193 B7 |
21 |
Pin |
Carbon steel |
10 |
Packing |
Graphite |
22 |
Bolt |
A193 B7 |
11 |
Gland |
A182 F6a |
23 |
Nut |
A194 2H |
12 |
Gland Flange |
Gs-C25 |
|
|
|
Dimensions(mm)
PN16 PN25 PN40 |
DN |
200 |
250 |
300 |
L |
275 |
325 |
375 |
H |
730 |
780 |
880 |
W |
PN16 |
450 |
500 |
600 |
PN25 |
450 |
500 |
600 |
PN40 |
500 |
550 |
650 |
|
|
|
