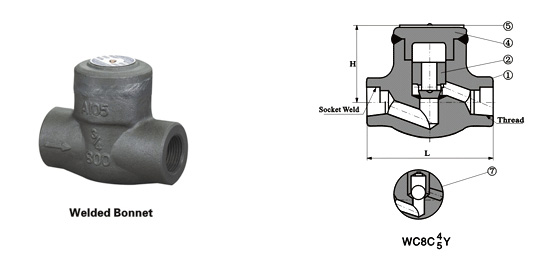

Class 150~1500 Welding Type Piston Check Valve


piston check valve
Class 150~1500 Welding Type Piston Check Valve

standard Material specifications (CLAss 150Lb~800Lb)
NO. Part Name Cs to AsTM As to AsTM ss to AsTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Piston Disc A276 410 A276 304 A276 304(L) A276 316(L)
3 Gasket Corrugated ss + graphite ss + PTFE
4 Bonnet A105 A182 F22 A182 F304 L A182 F316(L)
5 Nameplate ss
6 Bolt A193 B7 A193 B16 A193 B8M A193 B8M
7 Ball A182 F304 A182 F304 A182 F304 A182 F304
suitable Medium W.O.G. etc W.O.G. etc HNO3CH3OOH etc
suitable Temperature -29℃~ 425℃ -29℃~ 550℃ -29 ℃~180℃

Dimensions(mm) And Weights(kg)
NPs (in) Reduced. 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Full   3/4 1/2 3/4 1 1/4 1-1/2 2
L 79 79 92 111 120 152 172 200
H 61 61 65 79 95 103 118 132
Weights Bolted 1.4 1.2 1.5 3.1 3.9 5.6 8.9 12.5
Welded 1.1 1.0 1.2 2.9 3.3 4.9 8.1 10.9

standard Material specifications (CLAss900Lb~1500Lb)
NO. Part Name Cs to AsTM As to AsTM ss to AsTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Piston Disc A276 420 A276 304 A276 304(L) A276 316(L)
3 Gasket Corrugated ss + graphite ss + PTFE
4 Bonnet A105 A182 F22 A182 F304 L A182 F316(L)
5 Nameplate ss
6 Bolt A193 B7 A193 B16 A193 B8M A193 B8M
7 Ball A182 F304 A182 F304 A182 F304 A182 F304
suitable Medium W.O.G. etc W.O.G. etc HNO3,CH3OOH etc
suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃

Dimensions(mm) And Weights(kg)
NPs (in) Reduced. 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Full   3/8 1/2 3/4 1 1/4 1-1/2 2
L 92 111 111 120 152 172 200 220
H 65 79 79 97 104 120 139 215
Weights Bolted 1.6 3.4 3.3 5.5 6.0 9.2 12.9 16.2
Welded 1.3 3.2 3.1 4.8 5.4 8.5 11.2 14.3
