Class 800~1500 Bolt Type swing Check Valve |
|
|
|
standard Material specifications
NO. |
Part Name |
Cs to AsTM |
As to AsTM |
ss to AsTM |
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
2 |
seat |
A276 410 |
A276 304 |
A276 304(L) |
A276 316(L) |
3 |
swing Disc |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
4 |
Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
5 |
Hinge |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
6 |
Pin |
A276 420 |
A182 F304 |
A182 F316 |
7 |
Pont levis |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
8 |
Gasket |
Corrugated ss + graphite |
ss + PTFE |
9 |
Bonnet |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
10 |
Bolt |
A193 B7 |
A193 B16 |
A193 B8M |
A193 B8M |
suitable Medium |
W.O.G. etc |
W.O.G. etc |
HNO3,CH3OOH etc |
suitable Temperature |
-29℃~425℃ |
-29℃~550℃ |
-29℃~180℃ |

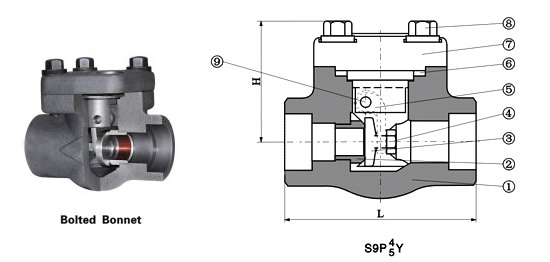

Dimensions(mm) And Weights(kg)
NPs (in) |
3/8 |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
L |
800Lb |
79 |
79 |
92 |
111 |
120 |
120 |
140 |
900~1500Lb |
92 |
111 |
111 |
120 |
120 |
140 |
178 |
H |
800Lb |
61 |
61 |
78 |
84 |
101 |
120 |
133 |
900~1500Lb |
79 |
79 |
79 |
97 |
105 |
120 |
140 |
Weights |
800Lb |
1.1 |
1.0 |
1.9 |
3.9 |
4.5 |
7.3 |
10.0 |
900~1500Lb |
3.1 |
3.0 |
3.6 |
4.3 |
6.1 |
8.8 |
12.6 |
|
|
|
