Class 900~2500 Pressure-seal swing Check Valve |
|
|
Class 900~2500 Pressure-seal swing Check Valve |

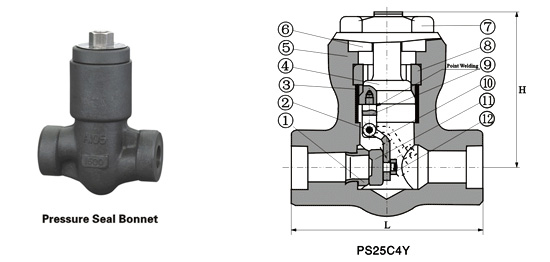

standard Material specifications
NO. |
Part Name |
Cs to AsTM |
As to AsTM |
ss to AsTM |
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
1 |
seat Ring |
A276 410 |
A276 304 |
A276 304(L) |
A276 316(L) |
2 |
Pin |
A276 420 |
A182 F304 |
A182 F316 |
3 |
Pressure Ring |
A276 304L |
A276 316(L) |
4 |
Pressure seat |
A105 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
5 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
6 |
Bonnet |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
7 |
Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
8 |
Quarter Ring |
A276 420 |
A182 F304 |
A182 F316 |
9 |
Pont levis |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
10 |
Hinge |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
11 |
Disc |
A276 420 |
F304 |
A182 F304(L) |
F316(L) |
12 |
Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
suitable Medium |
W.O.G. etc |
W.O.G. etc |
HNO3,CH3OOH etc |
suitable Temperature |
-29℃~425℃ |
-29℃~550℃ |
-29℃~180℃ |
Note: Other materials are available upon request.
Dimensions(mm) And Weights(kg)
NPs (in) |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
L |
900~1500Lb |
140 |
140 |
140 |
178 |
178 |
216 |
2500Lb |
186 |
186 |
186 |
232 |
232 |
279 |
H |
117 |
117 |
117 |
152 |
152 |
195 |
Weights |
900~1500Lb |
8.2 |
7.8 |
7.7 |
19.8 |
19.2 |
21.3 |
2500Lb |
10.0 |
9.6 |
9.4 |
21.5 |
21.1 |
22.8 |
|
|
|
