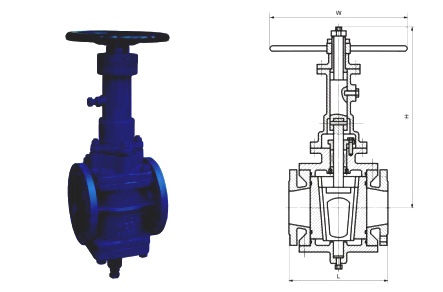

Class 150~900 Orbit Plug Valve


plug valve
Class 150~900 Orbit Plug Valve

Bolt bonnet Os & Y lifting-round plug.

Its sealing is realized by the sealing rings around the valve disc.It has unique protection of swallow tailed sink and fixed sealing rings.Double direction.

Principle of opening and closing of the valve

when the valve is fully opened,the channel of plug is in alignment with the channel of valve body,which can ensure ideal and lowest decrease on pressure.When the hand wheel is turned,the plug will rotate toward the closing direction,and make the same time draft the rotation of valve seat and close the valve.When the hand wheel is turned inversely,first of all the plug will move ipward,and the valve disc and valve seat will be separated;if the hand wheel is turned further on;till the valve disc is turned by 90 degree driven by the plug,and finally the channel of plug will be in alignment with the channel of valve body,so that the valve is be fully opened.

 standards compliance
Design and Manufacture: API 599,API 6D
Face to face(end to end): ANsI B 16.10
Flanged connection: ANsI B 16.5
Butt welded end: ANsI B16.25
Test and inspection: API 598,API 6D

standard Material specifications
NO.
Part name
Material
A216 WCB
A351 CF8
A351 CF8M
A351 CF3
A351 CF3M
1~14
Botten/yoke
A216 WCB
A351 CF8
A351 CF8M
A351 CF3
A351 CF3M
2
"O" ring
NBR/FEP/sBR/PTFE
3
sealing ring
NBR/FEP/sBR/PTFE
4
Plug
A182 F6a
A351 CF8
A351 CF8M
A351 CF3
A351 CF3M
5~8
Body cover
A216 WCB
A351 CF8
A351 CF8M
A351 CF3
A351 CF3M
6~7
Bolt/nut
B7/2H
B8/8
B8M/8M
B8M/8M
B8M/8M
9
Packing
Flexible graphite+stainless steel/PTFE
10
Gland
A216 WCB
A351 CF8
A351 CF8
A351 CF3
A351 CF3M
11
Hand wheel
AsTM A536 Gr.60-40-18 A216 WCB
12
Yoke nut
Cu-Allog/A439-D2
13
Yoke nut bushing
A216 WCB
A351 CF8
17
Pin
A182 F6a
A182 F321
A182 F321
A182 F316
A182 F316L
15~18
stem/Disc
A182 F6a
A182 F304
A182 F316
A182 F304L
A182 F316L
16
Guiding stud
A182 F6a
A182 F304
A182 F316
A182 F304L
A182 F316L

Dimensions(mm) and Weights(Kg)
Class 150Lb
size
inch
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
8
10
12
14
L-RF
mm
108
117
127
140
165
178
190
203
229
254
267
292
330
356
381
H
mm
230
260
300
340
380
435
460
490
525
570
625
700
780
870
980
W
mm
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
Weight
Kg
10
12
18
25
29
34
39
50
65
95
135
210
275
350
605

Class 300Lb
size
inch
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
8
10
12
14
L-RF,BW
mm
140
152
165
178
190
216
241
283
305
381
403
419
457
502
762
H
mm
230
260
300
340
380
435
460
490
525
570
625
700
780
870
980
W
mm
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
Weight
Kg
11
13
20
27
31
37
44
60
82
115
165
225
305
405
650

Class 600Lb
size
inch
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
8
10
12
14
L-RF,BW
mm
165
190
216
229
241
292
330
356
432
508
559
660
787
838
889
H
mm
230
260
300
340
380
435
460
490
525
570
625
700
780
870
980
W
mm
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
Weight
Kg
13
15
22
29
34
41
54
68
99
128
191
258
430
650
870

Class 900Lb
size
inch
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
8
10
12
14
L-RF,BW
mm
229
229
254
279
305
368
419
381
457
559
610
737
838
965
1029
H
mm
230
260
300
340
380
435
460
490
525
570
625
700
780
870
980
W
mm
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
Weight
Kg
15
19
24
32
38
47
62
75
115
147
220
379
490
720
1020
