Class 150~900 Eccentricity Plug Valve |
|
|
Class 150~900 Eccentricity Plug Valve |
- Eccentric design, lower friction, zero leakage.
- Welded-in stainless steel, high performance resin seal can meet corrosion resistance requirements of various medium.
- V type sealing ring can be changed on line without disassembling the operator.
- self-lubricated bearing provides very easy operation and low operation wearing.
- Ductile iron plug covered wholly with rubber for drip-tight shut off assures excellent erode and corrosion resistance.
- O-ring seals provide easy maintenance.
- Linear characteristics can be used for throttling purpose.
- straight through flow design and column form body can meet max. flow capacity requirements without deposits.
- Opening indication provides easy operation.
- Available for manual, pneumatic and electric actuator operation.
standard Material specifications
NO |
Part name |
Material |
1 |
Body |
AsTM A216-WCB AsTM A351-CF8,CF8M,CF3,CF3M |
2 |
Plug |
AsTM A216-WCB AsTM A351-CF8,CF8M,CF3,CF3M |
3 |
seat |
stainless steel, Nickel, Resin |
4 |
O-ring |
EPDM,NBR |
5 |
Bearing |
self-lubricated material |
6 |
Bonnet |
AsTM A216-WCB AsTM A351-CF8,CF8M,CF3,CF3M |
7 |
V-ring |
EPDM,NBR |
8 |
Pressing plate |
AsTM A216-WCB AsTM A351-CF8,CF8M,CF3,CF3M |

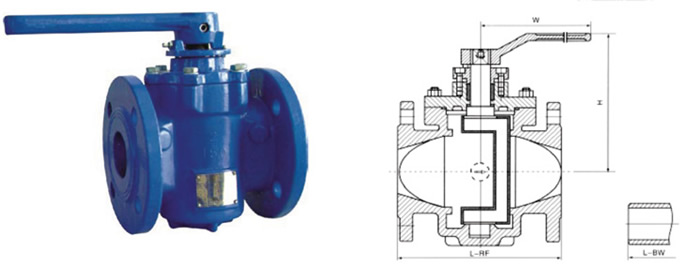

Dimensions(mm) and Weights(Kg)
Class |
150LB |
size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
L-RF |
108 |
117 |
127 |
140 |
165 |
178 |
190 |
203 |
229 |
254 |
267 |
292 |
330 |
356 |
381 |
L-BW |
152 |
178 |
203 |
216 |
229 |
267 |
305 |
330 |
356 |
381 |
394 |
457 |
533 |
610 |
686 |
H |
59 |
63 |
75 |
95 |
107 |
142 |
152 |
178 |
252 |
272 |
342 |
398 |
495 |
580 |
625 |
W |
400 |
400 |
500 |
500 |
600 |
600 |
820 |
820 |
300 |
300 |
320 |
320 |
350 |
380 |
380 |
Weight(kg) |
10 |
12 |
14 |
17 |
19 |
21 |
29 |
33 |
48 |
75 |
98 |
125 |
171 |
230 |
370 |
Class |
300LB |
size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
L-RF |
140 |
152 |
165 |
178 |
190 |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
762 |
L-BW |
152 |
178 |
203 |
216 |
229 |
267 |
305 |
330 |
356 |
381 |
457 |
521 |
559 |
635 |
762 |
H |
59 |
63 |
75 |
95 |
107 |
142 |
152 |
178 |
252 |
272 |
342 |
398 |
495 |
580 |
625 |
W |
400 |
400 |
500 |
600 |
600 |
820 |
1000 |
1000 |
300 |
300 |
320 |
320 |
350 |
380 |
380 |
Weight(kg) |
12 |
14 |
16 |
19 |
21 |
24 |
31 |
36 |
61 |
86 |
130 |
190 |
255 |
380 |
560 |
Class |
600LB |
size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
L-RF,BW |
165 |
190 |
216 |
229 |
241 |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
889 |
H |
59 |
63 |
75 |
95 |
107 |
142 |
152 |
178 |
252 |
272 |
342 |
398 |
495 |
580 |
625 |
W |
400 |
400 |
500 |
500 |
600 |
600 |
820 |
820 |
300 |
300 |
320 |
320 |
350 |
380 |
380 |
Weight(kg) |
14 |
16 |
18 |
20 |
24 |
29 |
35 |
47 |
91 |
129 |
210 |
320 |
660 |
920 |
1250 |
Class |
900LB |
size |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
L-RF,BW |
229 |
229 |
254 |
279 |
305 |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
939 |
965 |
1029 |
H |
59 |
63 |
75 |
95 |
107 |
142 |
152 |
178 |
252 |
272 |
342 |
398 |
495 |
580 |
625 |
W |
400 |
400 |
500 |
600 |
600 |
820 |
1000 |
1000 |
300 |
300 |
320 |
320 |
350 |
380 |
380 |
Weight(kg) |
17 |
29 |
21 |
24 |
30 |
37 |
44 |
65 |
110 |
160 |
255 |
380 |
810 |
1050 |
1460 |
|
|
|
