Lined Pipe & Fitting (PTFE cladding pipe & fittings)

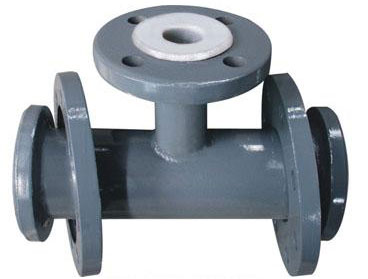

Lined tees with PTFE cladding:
Lining-Materials:
• up to diameter nominal DN1 100 (one-piece): PFA (virgin or
conductive)
• from diameter nominal DN1 125 (two-piece): PTFE (virgin or
conductive)
• up to diameter nominal DN1 300 (two-piece): PP
PFA-lined tees are also available as Lateral-Tees.
Different lining thicknesses and flange designs on request.
Flange design:
• loose-loose-loose
• fix-loose-loose
• fix-fix-fix
Other pressure rates:
• PN 16
• PN 25
• PN 40
Material: carbon steel and stainless steel
Special features: earthing studs, earthing lugs, flange stopper,
final painting.

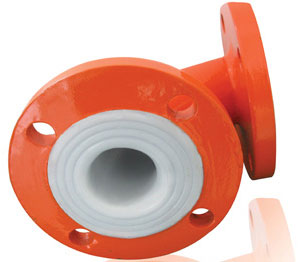

Lined elbows 45/90 with PTFE cladding:
Lining-Materials:
• PTFE (virgin or conductive)
• PP (up to diameter nominal DN 300, except DN 65 and
DN 125)
Different lining thicknesses on request.
Flange design:
• fix-loose
• fix-fix
• loose-loose
Other pressure rates:
• PN 16
• PN 25
• PN 40
Material: carbon steel and stainless steel Special features: earthing studs, earthing lugs, final painting.

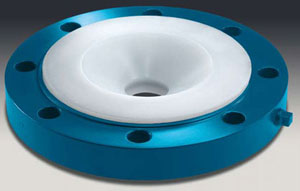

Lined reducing flanges with PTFE cladding:
Lining-Materials (see chart):
• PTFE (virgin or conductive)
• PFA (virgin or conductive)
• PP
Different lining thicknesses and flange designs on request.
Other pressure rates:
• PN 16
• PN 25
• PN 40
Material: carbon steel and stainless steel
Special features: earthing studs, earthing lugs, final painting.
Excentrical Reducing-Flange - Form E2 and E3 - on request.

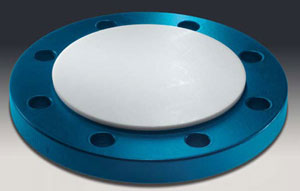

Lined blind flanges with PTFE cladding:
Lining-Materials:
• PTFE (virgin or conductive)
• PP (up to diameter nominal DN 300)
Different lining thicknesses on request.
Other pressure rates:
• PN 16
• PN 25
• PN 40
Material: carbon steel and stainless steel
Special features: earthing studs, earthing lugs,
final painting.

Lined Pipes with PTFE cladding:
Our pipes are lined, totally strainless, with paste-extruded PTFE and tested fully automatic.
Lining-Materials:
• PTFE (virgin or conductive)
• PP (up to diameter nominal DN 300)
Different lining thicknesses on request.
Flange design:
• fix-loose
• fix-fix
• loose-loose
Other pressure rates:
• PN 16
• PN 25
• PN 40
Material: carbon steel and stainless steel
Special features: earthing studs, earthing lugs, flange
stopper, field flaring pipes, final painting.
