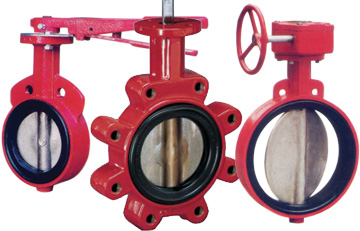

PN6~PN16 Wafer Type soft-seal Butterfly Valve


butterfly valve
1) standards:
A) Manufacture: GB12238, Mss-sP 67, API609
B)Face to Face Dimensions: ANsI B16.10, Mss sP-67, Mss sP-68 or API 609
C) Pipe flange: JB/T74 90, GB12380, HG20615~20635, sH3006, ANsI B16. 5
D) Testing and inspection: GB/T13927, API598

2) Body materials: CI, DI, WCB, ss
Disc: DI, SS304, SS316, Aluminum Bronze
split stem: WCB, SS416, SS304, SS316
seat: NBR, EPDM, PTFE, VITON

3) Flange drilling: DIN PN10/PN16
Bs4504, BS 10D/E
ISO2084, ISO2531
ANSI 125/150, AS2129
ASA125/150
JIS 5K/10K
PN6~PN16 Wafer Type soft-seal Butterfly Valve



Main Material
Parts Body Disc stem seal
Material CI
DI
WCB
ss
DI
Cs
ss
Cs
ss 416
ss 304/316
NBR
EPDM
VITON
Teflon

Dimensions

DN Dimensions(mm) 0.6MPa 1.0MPa 1.6MPa
L H1 H2 D1 n-φM D1 n-φM D1 n-φM
50 43 80 160 110 4-φ14 120 4-φ18 125 4-φ18
65 46 88 175 130 4-φ14 136 4-φ18 145 4-φ18
80 46 96 180 150 4-φ118 160 4-φ18 160 4-φ18
100 52 114 200 170 4-φ18 185 4-φ18 180 4-φ18
125 56 128 213 200 4-φ18 215 4-φ18 210 4-φ18
150 56 140 225 225 4-φ18 238 4-φ22 240 4-φ22
200 60 175 260 280 4-φ18 295 4-φ22 295 4-φ22
250 68 202 290 335 4-φ18 357 4-φ22 355 4-φ26
300 78 242 330 395 4-φ22 407 4-φ22 410 4-φ26
350 78 266 360 445 4-φ22 467 4-φ22 470 4-φ30
400 102 298 390 495 4-φ22 515 4-φ26 525 4-φ33
450 114 315 410 550 4-φ22 565 4-φ26 585 4-φ36
500 127 348 430 600 4-φ22 620 4-M24 650 4-M30
600 154 400 490 705 4-φ26 725 4-M27 770 4-M33
700 165 520 550 810 4-φ26 840 4-M27 840 4-M33
800 190 591 610 920 4-φ30 950 4-M30 950 4-M36
900 216 660 680 1020 4-M27 1050 4-M30 1050 4-M36
1000 254 670 835 1120 4-M27 1160 4-M33 1170 4-M39
1200   780   1340 4-M30 1380 4-M36 1390 4-M45
1400       1560 4-M33 1590 4-M39 1590 4-M45
1600       1760 4-M33 1820 4-M45 1820 4-M52
